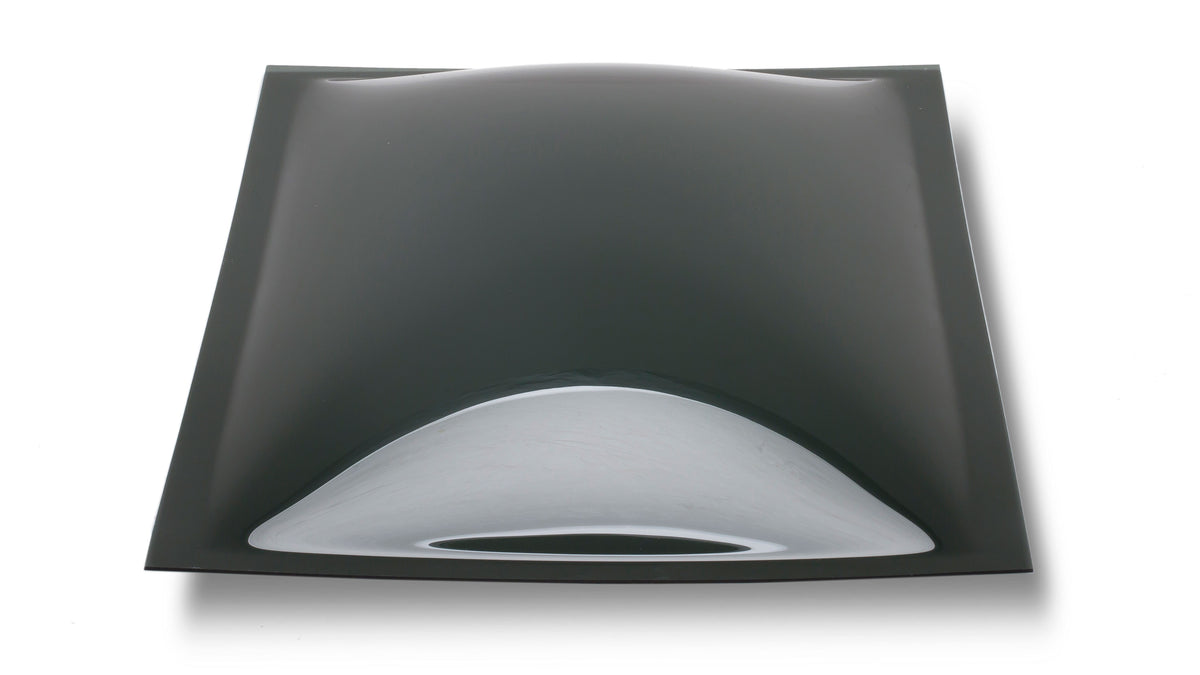

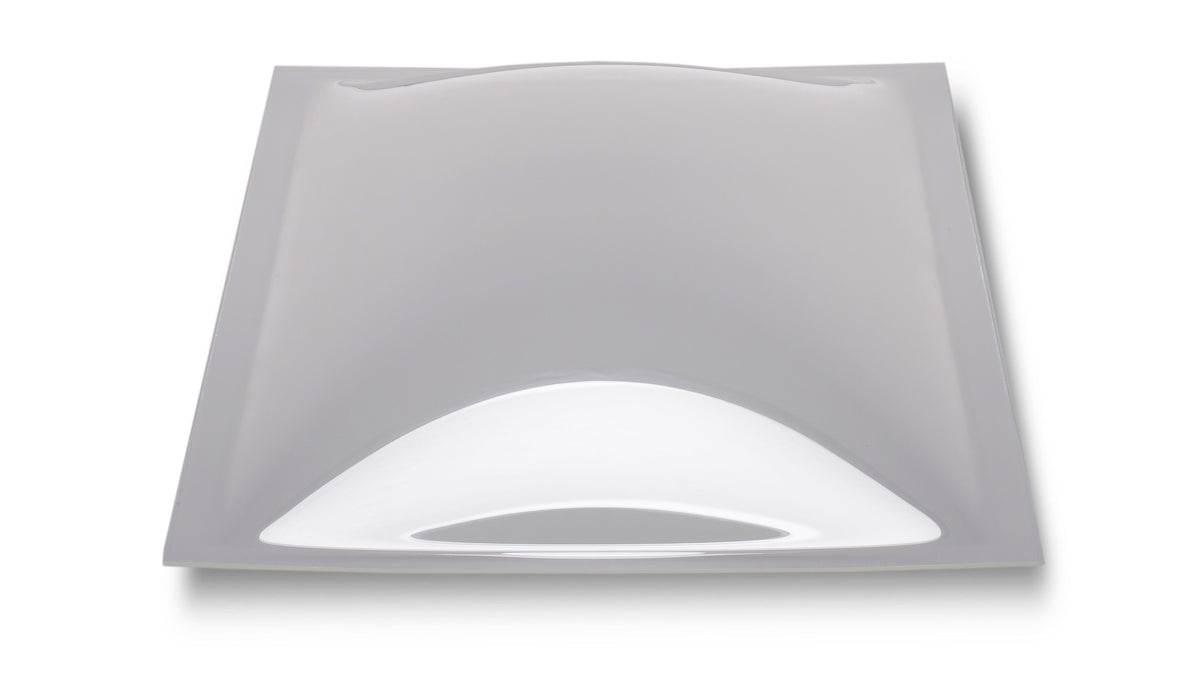

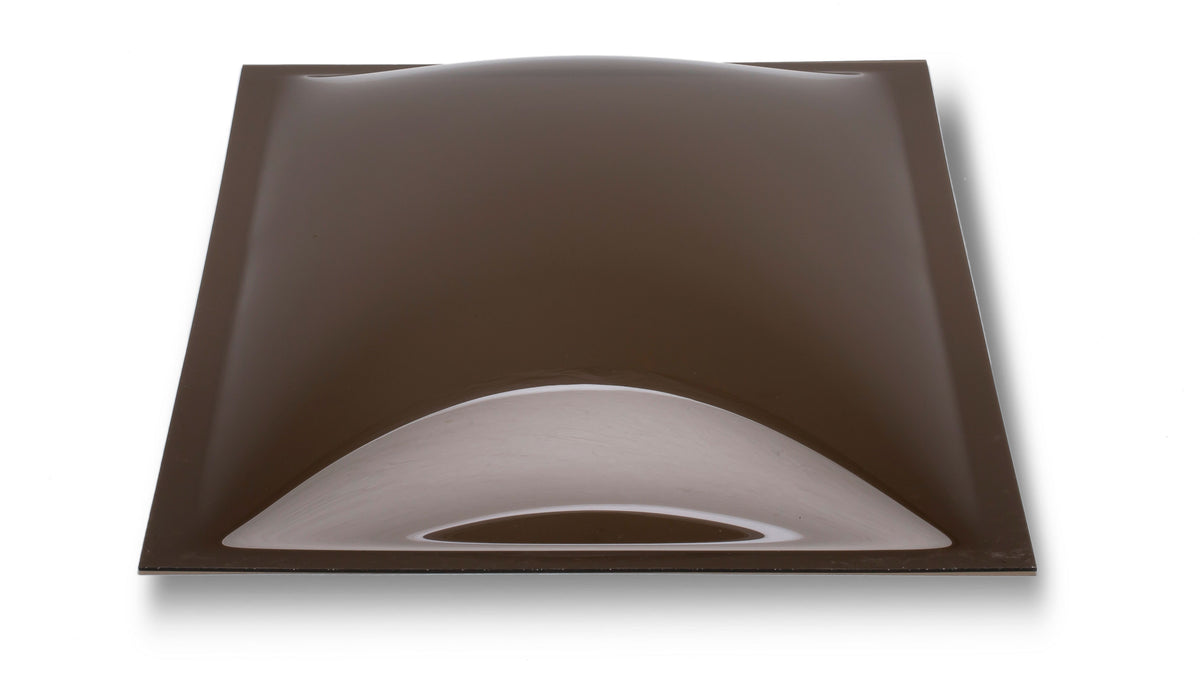

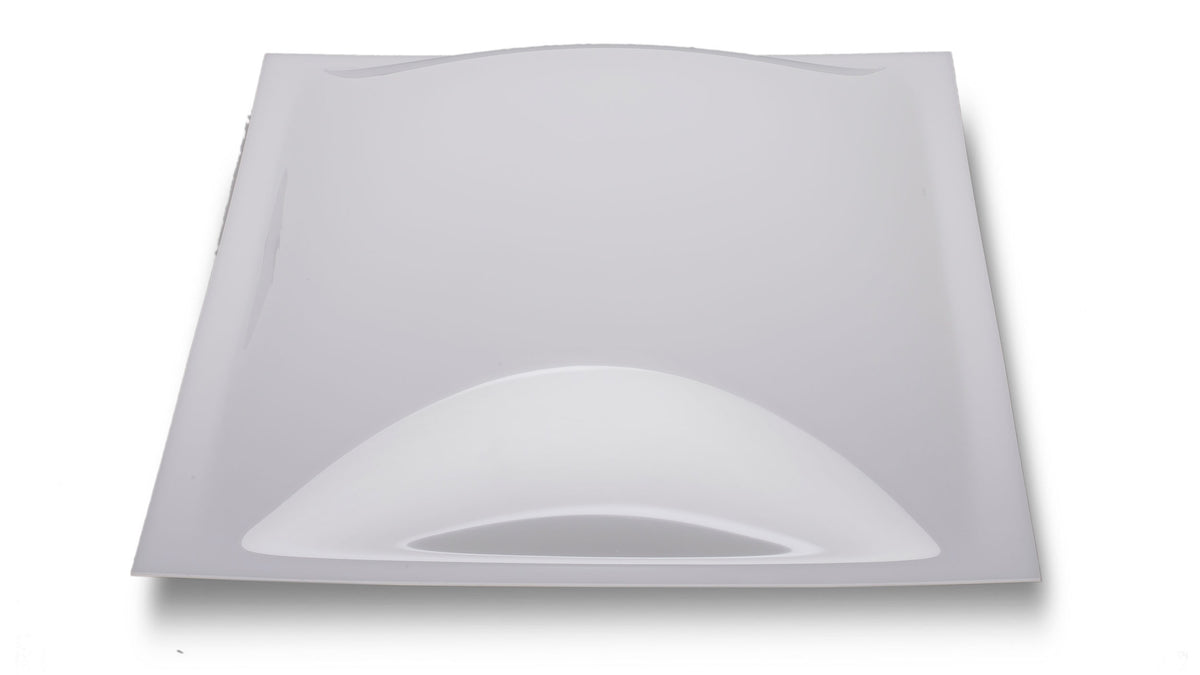

39.25"x49.25" Skylight Replacement Dome
Please fill out the form below for a custom quote
- Overall Dimension of Plastic (includes flange) 39 1/4" x 49 1/4"
- Flange 1 1/4", Dome dimension 36 3/4" x 46 3/4"
- Thickness .118 Approximately 1/8"
- Height of Outer Dome 7"
- Height of Inner Dome 5 1/2" (All inner domes are acrylic)
- Gradual Rise Profile (will not work with vertical rise or dome over frame units, contact us for helpful information regarding those shapes)
This product is designed for use in an existing residential/commercial framed gradual rise skylight where the frame and retainer are screwed together to hold the plastic in place. There is no such thing as a STANDARD size or deduction between the Outside of the retainer frame and the plastic underneath. Please remove screws and measure tip to tip of plastic prior to ordering.
