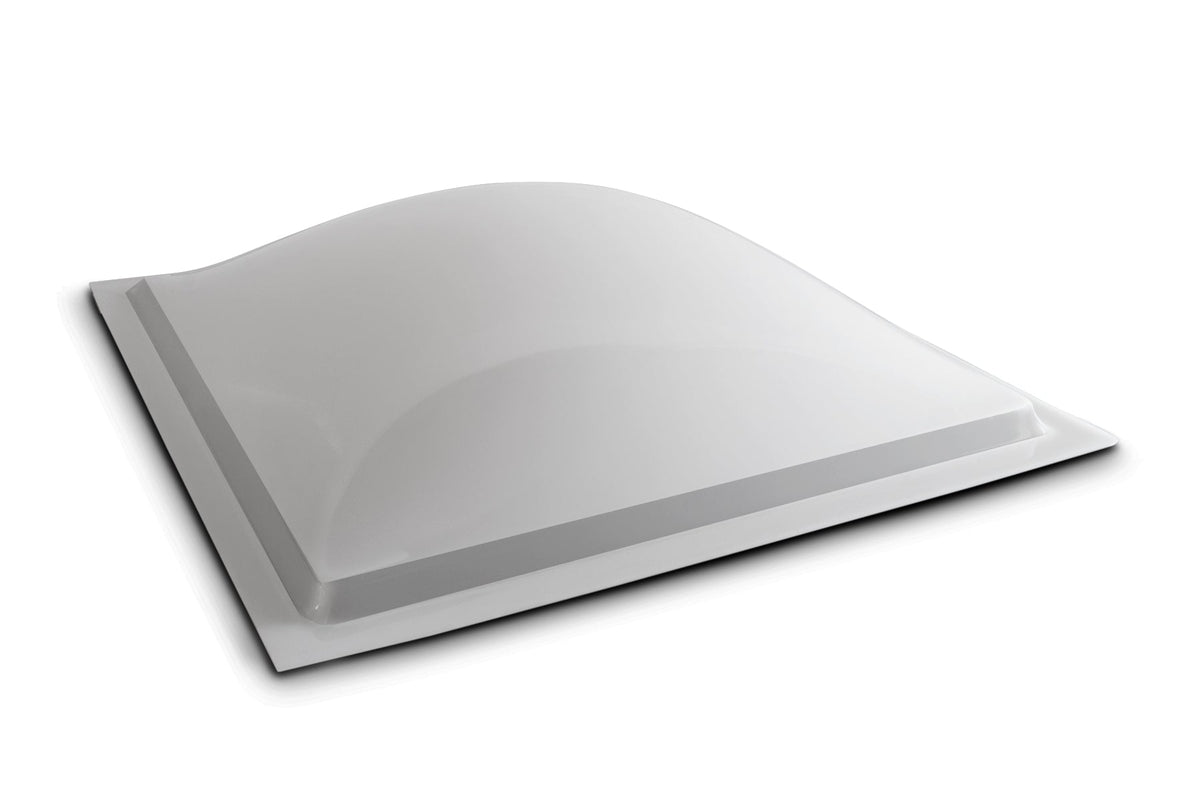

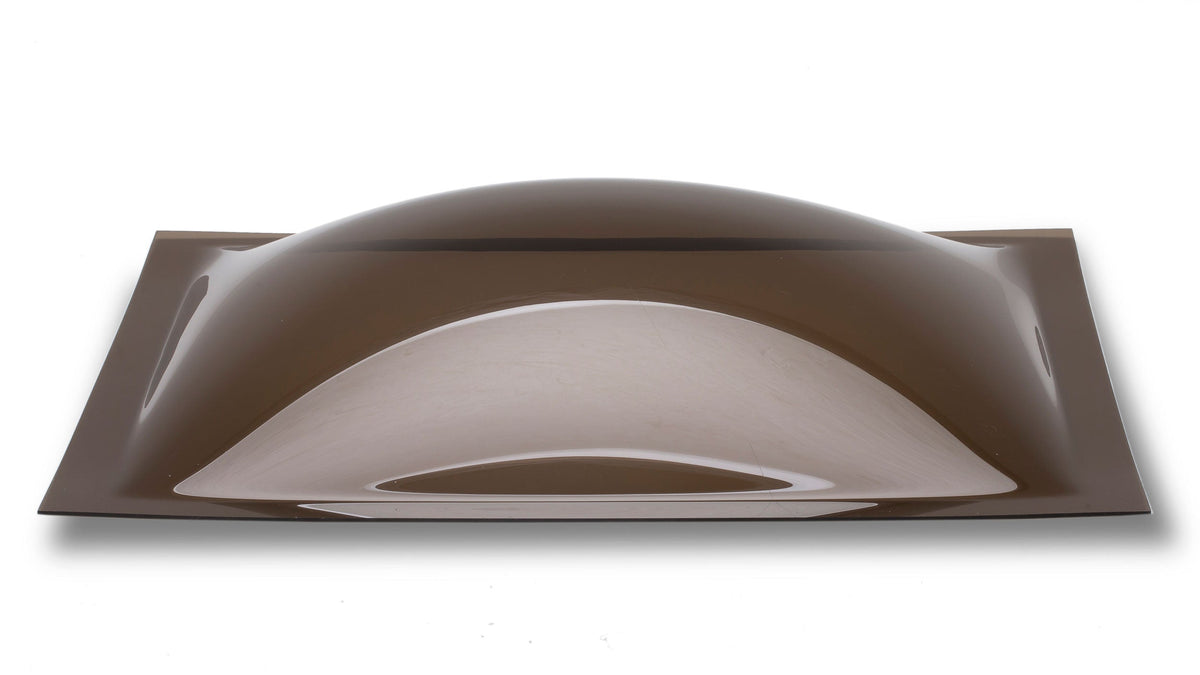

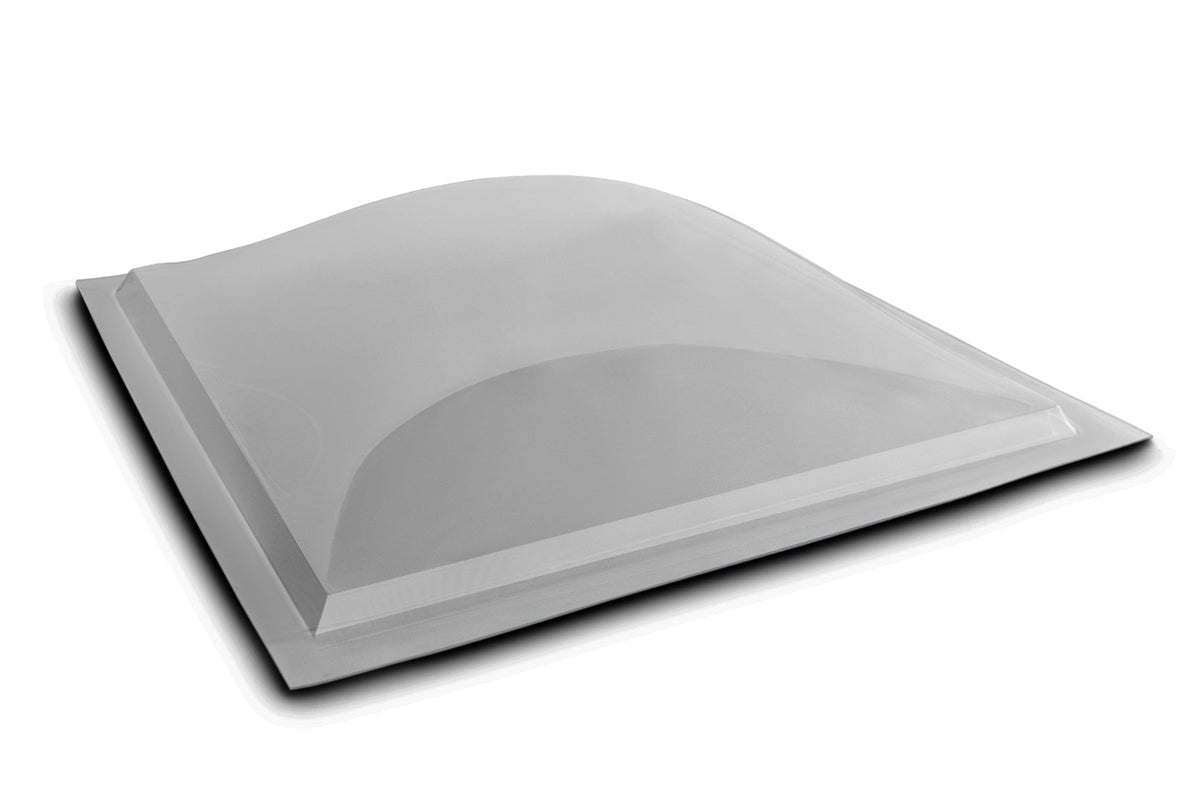

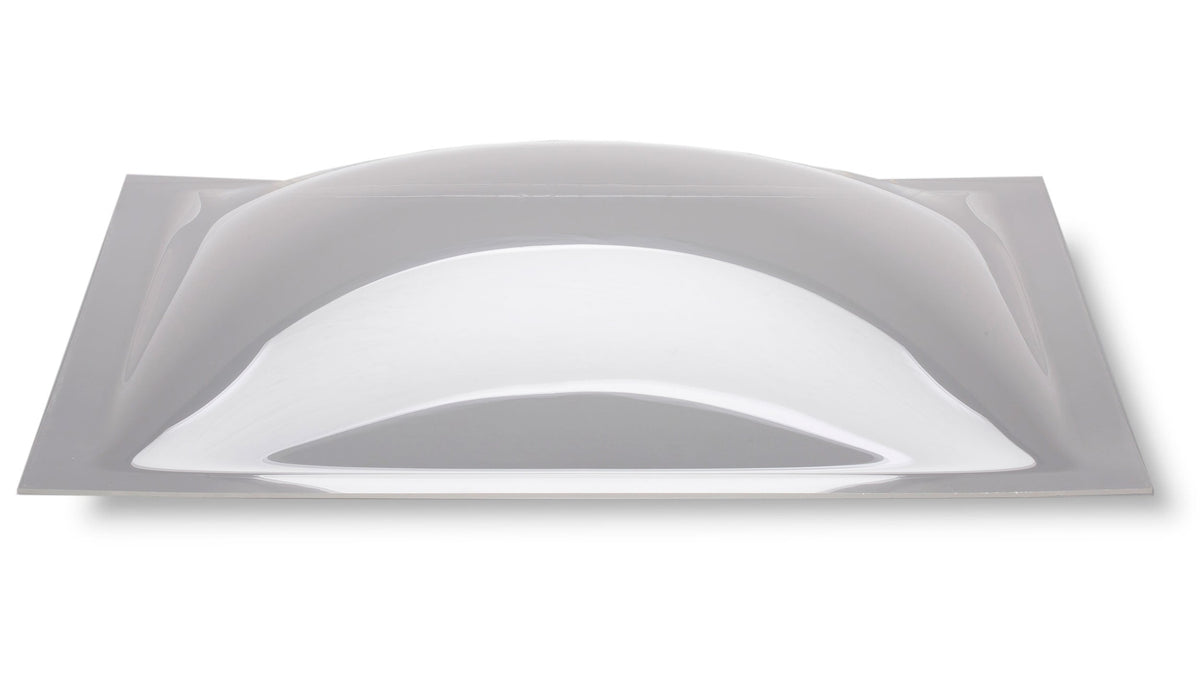

49.00"x49.00" Skylight Replacement Dome

Availability: special-order

Please fill out the form below for a custom quote

Product Description

  • Overall Dimension of Plastic (includes flange) 49" x 49"
  • Flange 1 1/2", Dome dimension 46" x 46"
  • Thickness .118 Approximately 1/8"
  • Height of Outer Dome 9"
  • Height of Inner Dome 7 1/2"
  • Material: Acrylic Only (Vertical Rise unavailable in Polycarbonate)

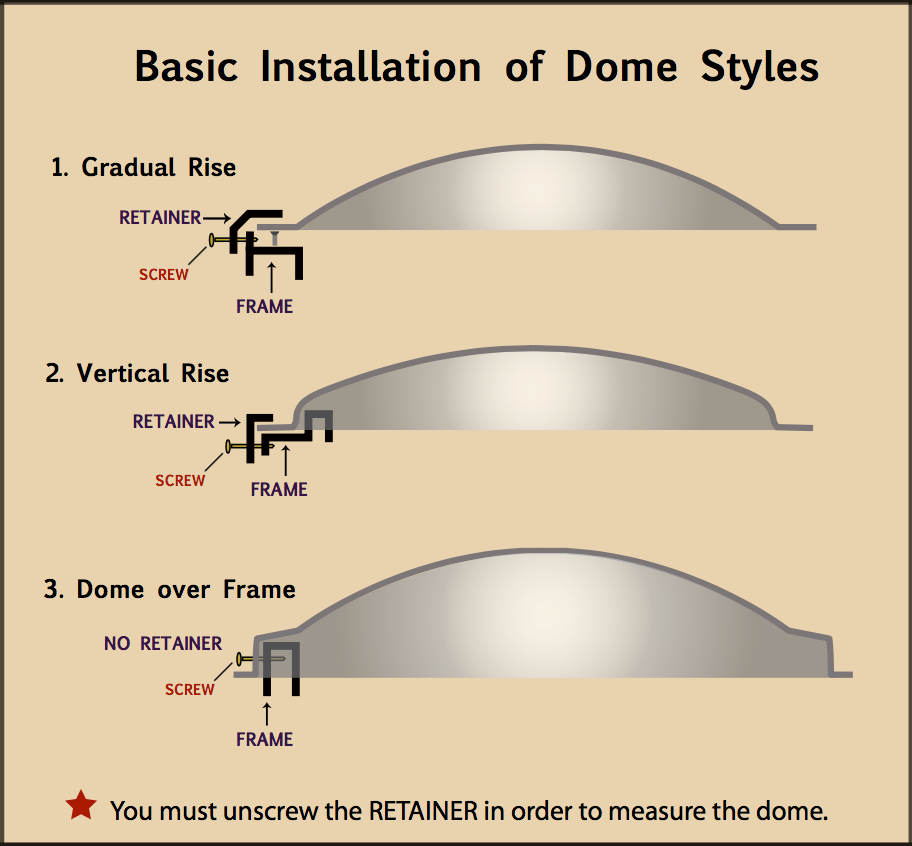

  • Vertical Rise Profile or Gradual Rise Profile (Both are commonly found in Texas and Oklahoma). Gradual Rise dome will NOT work in a vertical rise skylight frame.
  • The Vertical Rise Profile is sometimes referred to as Quick Rise (most commonly found in skylights manufactured by Solar Accessories)
  • We make all sizes! Please contact us if you need the size to be special.
  • This item is made to order (No Returns or Exchanges)
  • Please allow 3-5 days to prepare for shipping (larger quantities may increase lead time)
  • SHIPPING - This item ships on a pallet 54" x 54" LTL Freight

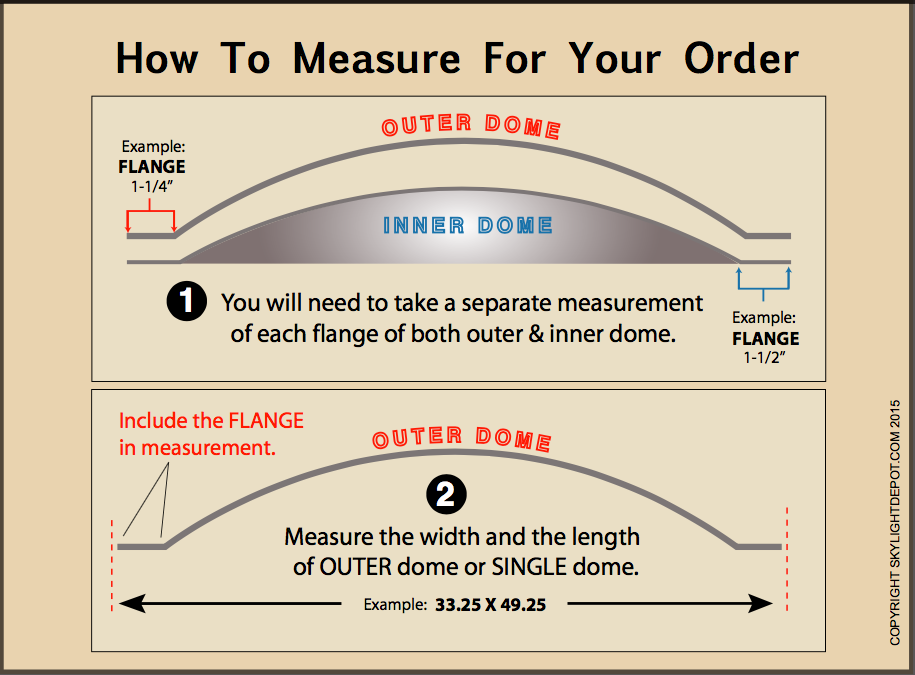

This product is designed for use in an existing residential/commercial framed gradual rise skylight where the frame and retainer are screwed together to hold the plastic in place.  There is no such thing as a STANDARD size or deduction between the Outside of the retainer frame and the plastic underneath.  Please remove screws and measure tip to tip of plastic prior to ordering.
